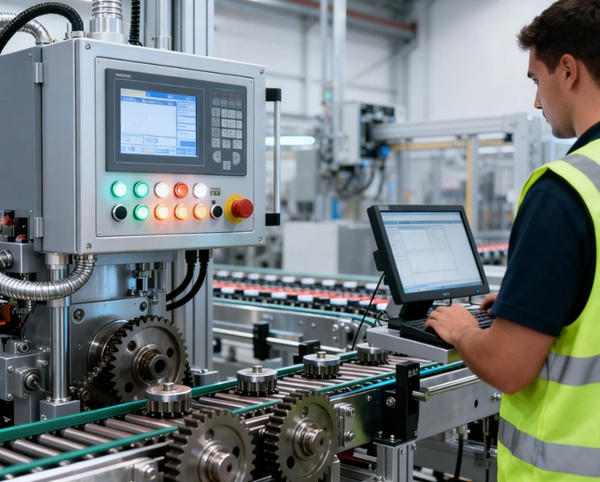

Industrial Control PCB Manufacturing & Assembly
Reliable PCB solutions for industrial automation, robotics, and control systems.
الدعم الهندسي
Our engineering team works closely with industrial equipment manufacturers to improve PCB reliability and long-term stability.
- DFM optimization
- High current PCB design
- EMI / EMC design support
- حلول الإدارة الحرارية
Industrial Control PCB Capabilities
TopfastPCB provides robust PCB fabrication and assembly solutions for industrial automation systems, motor drives, PLC controllers, and power electronics equipment. Our industrial PCBs are designed to operate reliably in harsh environments including vibration, electrical noise and high temperature conditions.
Thick Copper PCB
High current PCBs designed for motor drives, power modules and industrial power systems.
ثنائي الفينيل متعدد الكلور متعدد الطبقات
Complex multilayer PCBs used in PLC controllers and automation systems.
High Reliability PCB
Designed for long life cycles and continuous industrial operation.
| القدرة | المواصفات |
|---|---|
| Max Layer Count | 32+ Layers |
| Min Trace / Space | 4 / 4 mil |
| سُمك النحاس | Up to 6 oz |
| سُمك اللوح | 0.4 mm – 6.4 mm |
| تشطيب السطح | ENIG, HASL, OSP |
| المواد | FR4, High-Tg FR4, Heavy Copper |
| Quality Standard | IPC-6012 Class 2 / Class 3 |
| الفحص | AOI, Flying Probe, Functional Testing |
سير عمل التصنيع
DFM analysis and industrial reliability optimization.
Precision PCB manufacturing for industrial environments.
Automated SMT assembly and industrial-grade soldering.
AOI inspection and functional testing.
Industrial Control PCB Applications

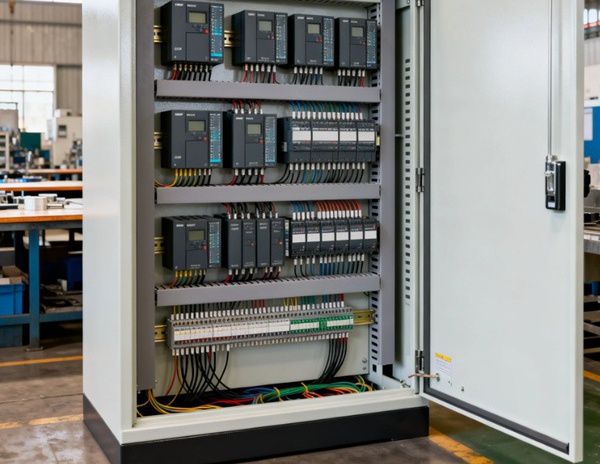

PLC Control Systems
Industrial PCBs used in programmable logic controllers for factory automation and equipment control.

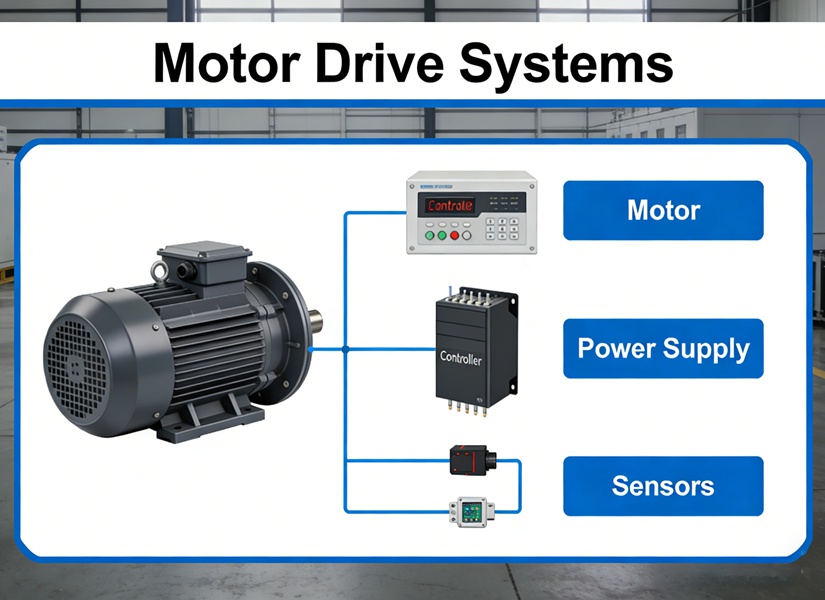

Motor Drive Systems
High current PCBs used in motor drives, industrial robotics and motion control equipment.
Industrial Robotics
Reliable control electronics for robotics, automation systems and smart manufacturing.

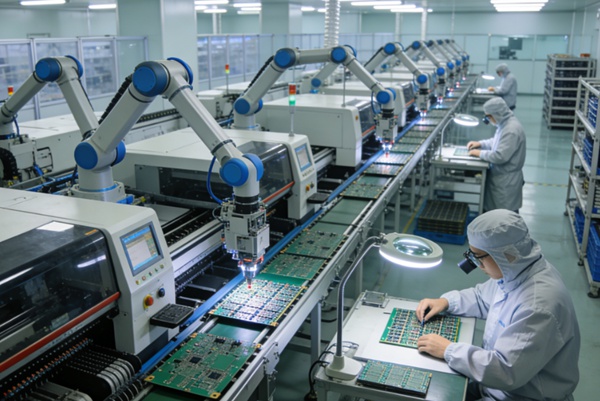

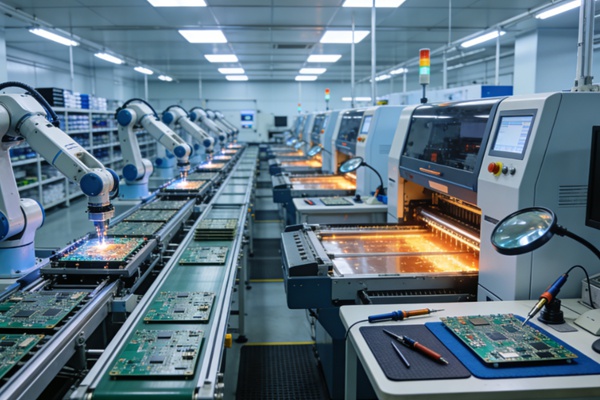

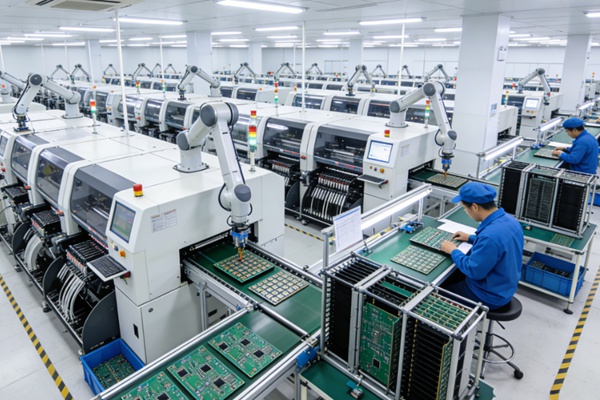

Our Manufacturing Facility
Start Your Industrial PCB Project
Contact our engineering team today.
احصل على عرض أسعار فوري
