1. Basic Functions and Importance of Solder Mask

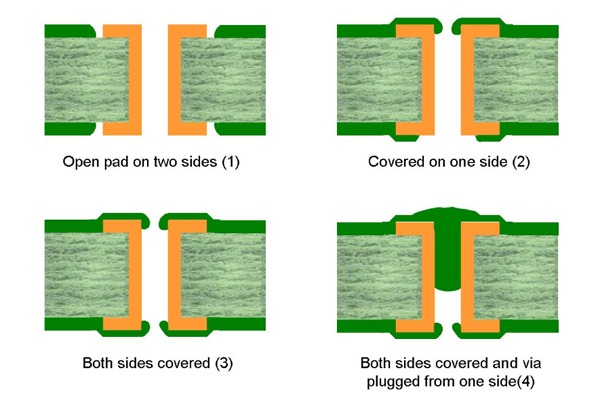

Solder mask, a polymer protective layer coated on the surface of printed circuit boards, is renowned as the “guardian of PCBs.” Its main functions include:
1.1 Preventing Solder Bridging and Short Circuits
During high-density PCB soldering, the solder mask precisely defines soldering areas, effectively preventing molten solder from forming unnecessary connections between adjacent pads or traces. Research shows that properly applied solder mask can reduce solder bridge defects by over 95%.
1.2 Environmental Protection
Solder mask forms a physical barrier, protecting copper traces from:
- Oxidation caused by moisture and corrosive gases
- Dust and pollutant accumulation
- Chemical erosion
- Mechanical wear and scratches
1.3 Enhancing Electrical Performance
By providing a stable dielectric layer, the solder mask can:
- Reduce signal crosstalk and capacitive coupling
- Improve breakdown voltage tolerance (typically by 30-50%)
- Maintain stable impedance characteristics
1.4 Appearance and Identification Function
Solder mask offers various color options (most commonly green), not only improving PCB appearance but also helping identify different functional areas and assembly orientations through color coding.
Table: Main Functions and Benefits of Solder Mask
| Functie | Technical Advantage | Application Benefit |
|---|
| Solder Bridge Prevention | Reduces short circuit risk | Improves yield, reduces rework costs |
| Environmental Protection | Extends PCB lifespan | Enhances product reliability |
| Electrical Insulation | Improves signal integrity | Boosts product performance |
| Appearance Enhancement | Brand recognition | Increases market competitiveness |
2. Main Types and Characteristics Comparison of Solder Mask
2.1 Liquid Photoimageable Solder Mask (LPI)
The most widely used solder mask material accounts for over 75% of the market share.
Voordelen:
- High resolution (up to 25μm)
- Excellent adhesion
- Good chemical resistance
- Suitable for complex patterns
Disadvantages:
- Requires precise process control
- Relatively high equipment investment
2.2 Dry Film Solder Mask
Voordelen:
- Uniform thickness
- Suitable for mass production
- Reduces VOC emissions
Disadvantages:
- Higher initial investment
- Requires high surface flatness
2.3 Thermal Cure Solder Mask
Voordelen:
- Excellent heat resistance
- Strong chemical stability
- Lower cost
Disadvantages:
- Limited precision
- Requires longer curing time
Table: Performance Comparison of Solder Mask Types
| Kenmerk | Liquid Photoimageable (LPI) | Dry Film | Thermal Cure |
|---|
| Resolutie | High (25μm) | Medium (50μm) | Low (100μm) |
| Adhesion | Uitstekend | Goed | Fairant ~4,3-4,8) |
| Heat Resistance | Good (>280°C) | Excellent (>300°C) | Excellent (>300°C) |
| Kosteneffectiviteit | Hoog | Medium | Hoog |
| Toepassingsscenario | High-density PCB | Massaproductie | Conventional applications |
3. Detailed PCB Solder Mask Manufacturing Process
Solder mask application is a multi-step precision process where each stage requires strict control to ensure final quality.
3.1 Pre-treatment
- Acid cleaning: Removes copper surface oxides
- Board grinding: Increases surface roughness (Ra 0.3-0.5μm)
- Cleaning: Removes all contaminants
Pretreatment quality directly affects solder mask adhesion; poor treatment may lead to subsequent delamination issues
3.2 Ink Coating
Select an appropriate coating method based on PCB type:
- Screen printing: Low cost, suitable for most applications
- Curtain coating: Uniform thickness, suitable for high-quality requirements
- Spraying: Suitable for irregular surfaces
3.3 Pre-baking and Exposure
- Pre-baking: 80-100°C, removes solvents
- Blootstelling ~4.3-4.8): Selective curing using UV light source (300-400nm) through photomask
3.4 Development and Curing
- Ontwikkelingsant ~4,3-4,8): Removes uncured areas using 1% sodium carbonate solution
- Final curing: 150°C, 60 minutes, ensures complete cross-linking
4. How to Choose the Right Solder Mask for Specific Applications
Selecting a solder mask requires comprehensive consideration of multiple factors. Below is a key decision-making guide:
4.1 Selection Based on Application Environment
- Outdoor equipment: Choose UV-resistant white or light gray solder mask
- High-temperature environments: Select materials with a high glass transition temperature (Tg)
- Chemical environments: Choose epoxy systems with excellent chemical resistance
4.2 Selection Based on Electrical Requirements
- Toepassingen voor hoge frequenties: Choose materials with low Dk (dielectric constant)/Df (dissipation factor)
- High-voltage applications: Select materials with high breakdown voltage specifications
4.3 Selection Based on Process Requirements
- High-density designs: Choose high-resolution LPI solder mask
- Massaproductie: Consider the efficiency advantages of dry film solder mask
- Cost-sensitive applications: Evaluate total manufacturing cost rather than material cost alone
Table: Solder Mask Selection Guide for Different Application Scenarios
| Application Field | Recommended Type | Thickness Requirement | Color Suggestion |
|---|
| Consumentenelektronica | LPI | 0.8-1.2mil | Green/Black |
| Automobielelektronica | High-temperature LPI | 1.2-1.5mil | Green/Blue |
| Medische apparatuur | Biocompatible LPI | 1.0-1.5mil | Blue/White |
| Ruimtevaart | High-performance LPI | 1.5-2.0mil | Green/Yellow |
| High-frequency Communication | Low Dk/Df Materials | 0.5-0.8mil | Green/Blue |
5. Common Issues and Solutions
5.1 Adhesion Issues
Symptomen: Solder mask peeling or blistering
Oplossingen:
- Enhance pretreatment cleanliness
- Optimize surface roughness
- Adjust curing parameters
5.2 Insufficient Resolution
Symptomen: Solder mask bridging between fine traces
Oplossingen:
- Select a higher resolution ink
- Optimize exposure parameters
- Check mask quality
5.3 Incomplete Curing
Symptomen: Sticky surface or insufficient hardness
Oplossingen:
- Confirm the curing temperature profile
- Check ink storage conditions and expiration date
- Adjust curing time
6. Industry Standards and Quality Control
6.1 IPC Standard Requirements
- IPC-SM-840: Qualification and Performance Specification for Solder Mask Materials
- IPC-6012: Qualification and Performance Specification for Rigid PCBs
- IPC-A-600: Acceptability Standards for PCBs
6.2 Key Quality Indicators
- Thickness uniformity: Within ±10%
- Hardness: >6H pencil hardness
- Heat resistance: No abnormalities after 288°C solder testing
- Insulation resistance: >10⁸ MΩ
6.3 Testing Methods
- Optische inspectie: Automated Optical Inspection (AOI) systems
- Thickness measurement: Eddy current thickness gauges or cross-sectional analysis
- Adhesion testing: Tape test and cross-cut test
- Elektrisch testen: High-voltage testing and insulation resistance testing
Conclusie
Solder mask plays an indispensable role in PCB-productie. Its selection and application directly affect the final product’s performance, reliability, and service life. As electronic devices evolve toward miniaturization, high density, and high frequency, solder mask technology continues to advance. Design engineers and manufacturers need to deeply understand the characteristics and process requirements of solder mask, make optimal choices based on specific application scenarios, and ensure products meet industry standards and requirements through strict quality control.
