Bedradingsbundel

Showing 1 products

FAQ

  • Is het harnas universeel?

    Kabelbomen zijn meestal niet universeel en hun ontwerp moet worden aangepast aan specifieke productvereisten. Verschillende apparaten in de modelspecificaties, functionele configuratie en toepassingsscenario's en andere aspecten van de gedifferentieerde behoeften, zullen rechtstreeks van invloed zijn op het ontwerp van de kabelboom.

  • Wat zijn de certificeringsgegevens voor jullie harnassen?

    Onze kabelbomen zijn gecertificeerd door de industrie IATF16949, milieuvriendelijk volgens de RoHS/REACH-normen en worden vervaardigd om zoutsproeitests uit te voeren om te voldoen aan de indicatoren voor verzending en toepassing op printplaten.

  • Wat zijn de classificatietests voor uw harnassen?

    Specifiek afhankelijk van de vraag en de toepassing scenario's, doen we vaak het niveau van het testen, zoals: multi-bending scenario's toegepast op de flexibiliteit test, IP67 waterdichte test, hoge temperatuur 150 ℃ test, vlamvertragende rang UL VW-1 test, enzovoort.

  • Ik wil een product kopen Hoe bestel ik?

    Online: Vraag een gratis offerte aan op onze website. EMAIL: op@topfastpcb.com Stuur een e-mail met de volgende informatie: naam, bedrijf, adres, telefoonnummer, e-mailadres, productnummer, hoeveelheid, productduur en alle andere informatie die u met ons wilt delen. Voeg uw gerber-bestand bij.

  • Hoe zit het met de verzending?

    Voor kleine pakketten raden we aan een koerier te gebruiken (bijv. DHL, UPS, FedEx en EMS deur-tot-deur diensten!) Dit is de snelste maar ook de duurste manier. Voor grote pakketten is zeevracht de beste oplossing. We kunnen je alleen nauwkeurige verzendkosten geven als we de details van de hoeveelheid, het gewicht en de verzendmethode weten.

Product Introductie Draaduitrusting

Electrical transmission components that optimize space layout and enhance reliability, becoming indispensable
for modern intelligent manufacturing across industries.

Onderdelen bedradingsbundel


Conductor System

  • Material: High-purity copper (conductivity ≥ 99.9%) or aluminum alloy
  • Cross-sectional area: 0.85-20mm² (IEC 60228 standard)
  • Insulation: PVC/XLPE/silicone rubber (-40℃~200℃)

🔌
Interconnection Components

  • Terminals: Phosphor bronze/brass (contact resistance <5mΩ)
  • Connector: USCAR-2/ISO 8092 compliant
  • Waterproof grade: IP67/IP69K (automotive grade)

🛠️
Mechanical Fixing

  • Beperkingen:Nylon kabelbinders (UL94 V-0 vlamvertragend)
  • Positioneerclips:PP/PA66 technische kunststoffen
  • Protective sleeve: Braided weave (abrasion resistance ≥50,000 cycles)
  • Tested for vibration (20-2000Hz) and salt spray (96h)

Classification of Wire Harness

By Function Type
By Protection Characteristics

🔋
Power Transmission

  • High current capacity (up to 600A)
  • Thick insulation (1.5-3mm)
  • Applications: EV power systems

📶
Signaaloverdracht

  • Twisted pair/shielded structure
  • Impedance control (50Ω/75Ω)
  • Applications: Vehicle CAN bus

💾
Data Communication

  • High-frequency coaxial cable (up to 10Gbps)
  • USB3.0/HDMI2.1 compliant
  • Applications: Intelligent cockpit systems

🌊
Waterproof Type

  • IP67/IP69K rated
  • Sealed connectors
  • Waterproof tape wrapping
  • Applications: Chassis wiring

🌡️
High-Temperature Resistant

  • -40℃~200℃ range
  • Silicone rubber insulation
  • Silver-plated terminals
  • Applications: Engine compartment

🔥
Flame Retardant

  • UL94 V-0 rated
  • Ceramicized silicone material
  • Metal protective sleeve
  • Applications: Battery packs

Core Functions of Wiring Harness Systems

1

Systematic Circuit Integration

Integrates 200-5000 wires into modular systems, connecting 300+ components like ECUs and sensors.
Example: Automotive CAN bus network integrating 12 subsystems.

2

Multi-modal Transmission Hub

Supports 12V-800V range (300A for EV high-voltage harnesses) and 10Kbps-10Gbps data rates.
Meets AutoSAR architecture requirements.

3

Reliability Enhancement

Triple protection: physical (wear-resistant braid), chemical (corrosion-resistant coating),
and environmental (-40℃~150℃). Failure rate <50PPM (Six Sigma).

4

Engineering Efficiency

Pre-assembly reduces installation by 40%, modular design cuts maintenance by 60%.
Example: Volkswagen MQB platform achieves 75% commonality.

5

Cross-field Applications

EVs (ISO 6469), Industry 4.0 (PROFINET), Aerospace (AS50881).
Adaptable to diverse industry requirements.

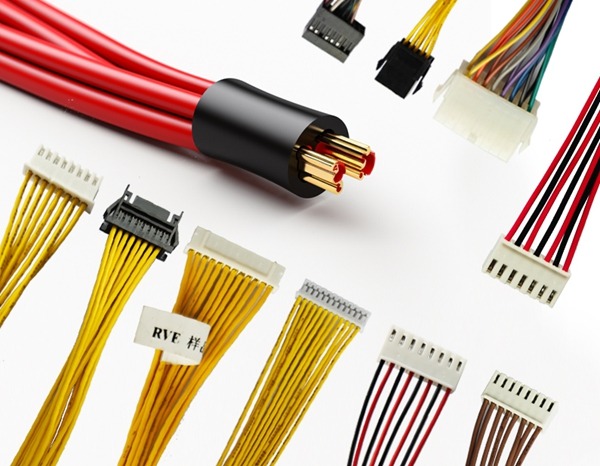

Wire Harnesses for PCBs

Wire harnesses connect multiple PCB assemblies, ensuring error-free connections and organized cable management.
They enable complete circuit systems by interconnecting PCBs in electronic devices.

➡️
Point-to-Point Harnesses

  • Simplest type with direct connections
  • Bundled into individual assemblies
  • Ensures error-free PCB connections

↗️
Bifurcated Cables

  • Single connector with multiple branches
  • Connects one PCB to multiple others
  • Ideal for multiple connection points

🔄
Flexible Printed Circuits

  • Flat ribbon cables as harnesses
  • Mix of connector types supported
  • Space-saving for compact designs

Advantages of Wire Harnesses


Improved Reliability

Standardized manufacturing reduces human error with precisely measured and tested wires,
increasing overall system reliability.

🔧
Simplified Installation

Modular design with pre-fabricated harnesses reduces installation time by 40%,
with color coding for easy maintenance.

🏭
Productie-efficiëntie

Pre-designed harnesses standardize assembly, reducing complexity and costs while
enabling mass production.

📦
Space & Weight Savings

Optimized wire bundling reduces clutter and unnecessary lengths, crucial for
automotive, aerospace, and portable electronics.

🛡️
Enhanced Safety

Insulation prevents shorts, while protective sleeves and clips guard against
mechanical and environmental damage.

🌍
Environmental Adaptation

Special materials withstand high temps, vibration, humidity, radiation, and EMI
for automotive, industrial, and aerospace use.

Toepassingsgebieden

🚗

Automotive

Body harnesses, EV systems, CAN bus networks

🏭

Industrieel

Barcode printers, power supplies, testing equipment

🏥

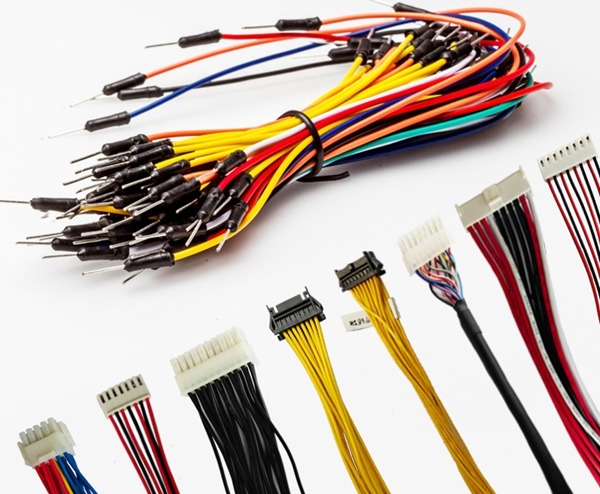

Medisch

Monitors, anesthesia machines, imaging equipment

💻

IT Products

Laptops, servers, security systems

🏦

Financial

ATMs, cash registers, terminals

🚀

Ruimtevaart

Avionics, satellite systems
