In the field of high-speed circuit design, engineers often focus on sophisticated schematics and component selection but can easily overlook a hidden backbone that determines project success: PCB Stack-Up Design. A meticulously planned stack-up is the silent guardian of signal integrity, power integrity, and EMC; whereas a haphazard stack-up layout can doom even the most brilliant circuit design.
Based on the manufacturing and co-design experience from thousands of successful projects, our engineering team at TOPFAST PCB deeply understands the profound impact of stack-up decisions. This ultimate guide aims to systematically dissect the core principles, practical configurations, and advanced techniques of PCB stack-up design, helping you mitigate risks from the source and enhance your product’s performance and reliability, ensuring your design succeeds right from the prototype run.
Part 1: What is a PCB Stack-Up? Why is it So Critical? (Fundamental Concepts)

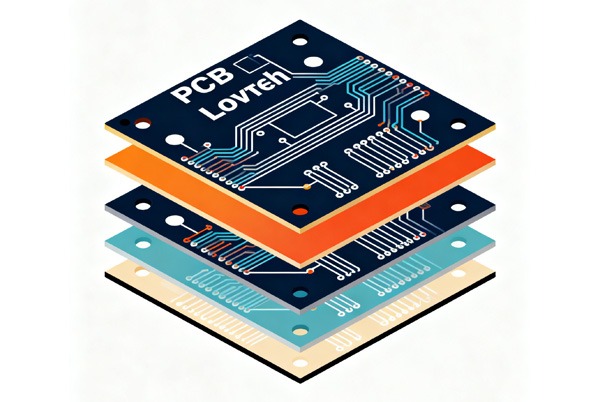

A PCB stack-up refers to the arrangement and sequence of copper foil, core materials, and prepreg (pre-impregnated material) in a multilayer printed circuit board. It is far more than just “stacking layers”; it is a complete electrical, mechanical, and thermal management system.
At TOPFAST PCB, we have seen numerous cases where a poor stack-up design leads to:
- Signal Integrity Disasters: Severe reflection, crosstalk, and loss.
- Power Integrity Collapse: Excessive power noise, system instability.
- EMC Certification Failures: Exceeding EMI emissions standards or poor noise immunity.
- Soaring Production Costs: Board warping, lamination issues leading to reduced yield.
Part 2: Core Design Principles: Five Golden Rules Beyond “Symmetry”
- Symmetry is King: Prevents board warping after lamination; this is the cornerstone of manufacturability. The engineering team at TOPFAST PCB emphasizes that symmetrical design is the primary condition for ensuring high-volume production yield.
- Tightly Couple Signals to Their Return Planes: High-speed signal layers must be adjacent to their reference plane (ground or power). This is key for controlling impedance, reducing the current return loop area, and lowering EMI.
- Provide a Continuous Reference Plane for Every Signal Layer: Avoid discontinuities in the reference plane, as they cause signals to cross splits, leading to severe EMI and SI issues.
- Embed Signal Layers Internally: Route high-speed signals between two reference planes, forming a natural “stripline” structure that effectively shields radiation.
- Place Multiple Ground Planes Close Together: Especially in high-frequency applications, this creates a low-impedance, capacitive coupling path, providing an excellent return path for high-frequency noise.
Part 3: Practical Stack-Up Configuration Analysis (From 2 to 12 Layers)
| Layers | Recommended Stack-Up Structure | Advantages | Disadvantages | Typical Use Cases |
|---|
| 2-Layer | Sig1 – GND/PWR | Lowest Cost | No solid reference plane, poor SI/PI | Low-frequency, simple consumer products |
| 4-Layer | Sig1 – GND – PWR – Sig2 | Good cost-effectiveness, improved SI | Outer signals are unshielded | General-purpose microcontrollers, medium-speed digital circuits |
| 6-Layer | Sig1 – GND – Sig2 – Sig3 – PWR – Sig4 | 4 routing layers, cost-effective | Poor power/ground coupling | Complex logic circuits require more routing space |
| 6-Layer (Optimized) | Sig1 – GND – Sig2 – PWR – GND – Sig3 | 2 ground planes, tight PWR-GND coupling | Reduced to 3 routing layers | TOPFAST Recommended for most high-speed designs |
| 8-Layer | Sig1 – GND – Sig2 – PWR – GND – Sig3 – GND – Sig4 | Excellent SI/PI and EMC performance | Higher Cost | High-speed digital, entry-level SerDes (e.g., PCIe 3.0) |
Pro Tip from a TOPFAST Engineer: For boards with more than 8 layers, the core strategy is to add ground planes, not signal layers. A 10-layer board might use a structure like S-G-S-G-S-P-S-G-S-G, ensuring every signal layer has an adjacent reference plane. This is one of the key items we check in our Design for Manufacturability (DFM) Analysis service.
Part 4: Advanced Topics: Tackling High-Speed, High-Frequency, and High-Density Challenges
1. High-Speed Digital Design (>5 Gbps)
- Material Selection: When loss becomes a bottleneck, consider Low-Loss (Low-Df) Materials like Panasonic Megtron, Rogers RO4350B, etc., instead of standard FR-4. TOPFAST PCB partners with top global material suppliers and can provide the most cost-effective material selection advice for your project.
- Stack-Up Strategy: Ensure consistent reference planes for differential pairs. Avoid changing reference planes. If a layer change is necessary, place ground return vias near the signal vias.
- Simulate First: Before finalizing the stack-up, use SI/PI simulation tools (e.g., Cadence Sigrity, SIwave) to analyze insertion loss, return loss, and power impedance.
2. RF/Microwave Circuit Design
- Hybrid Stack-Ups: Often use “mixed dielectric” structures. The outer layers might use high-frequency materials like Rogers RO4350B for microstrip lines, while inner layers use FR-4 for digital circuits and power, balancing performance and cost. TOPFAST PCB has extensive experience in hybrid lamination processes, ensuring the quality and reliability of such complex stack-ups.
- Ground Via Stitching: Place dense rows of grounding vias on both sides of RF transmission lines to prevent mode leakage and suppress resonances.
- HDI Stack-Ups: Heavily utilize microvias and any-layer interconnects. The stack-up may contain multiple “buildup” pairs. The design focus is on managing dielectric thicknesses to achieve fine trace widths and impedance control.
- Rigid-Flex Boards: The stack-up includes flexible areas. The neutral axis must be considered during design to ensure circuits are not under excessive stress during bending. TOPFAST PCB offers an integrated rigid-flex solution from stack-up design and material selection to precision production, helping you navigate design risks.
Part 5: Design Flow & Manufacturer Communication Checklist
- Define Requirements: Determine circuit type (High-Speed/RF/Digital), signal speeds, power currents, and cost targets.
- Select Materials: Based on frequency and loss requirements, confirm base material specifications and availability with your PCB manufacturer (like TOPFAST PCB).
- Plan Stack-Up: Apply the golden rules to draft the initial stack-up structure.
- Impedance Modeling: Use tools like Polar Si9000 to calculate precise trace width/ spacing based on selected materials, copper weights, and target impedance.
- Simulation Verification (Highly Recommended): Extract a broadband model of the stack-up in your EDA tool to perform channel and power network simulations.
- Communicate with the Manufacturer: Fill out the “PCB Fabrication Drawing” or “PCB Build Sheet” with your stack-up structure and impedance requirements, and always confirm with the PCB fab engineer.
Added Benefit of Partnering with TOPFAST PCB: When you submit your design files to TOPFAST, our engineering team provides a free, comprehensive DFM Analysis, which includes a review of your stack-up structure, impedance calculations, and material choices, ensuring your design intent is perfectly realized in production and avoiding costly re-spins.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between a 4-layer and a 6-layer board? A: The main difference lies in the number of ground/power planes and the control over signal integrity. A 4-layer board typically has only one ground and one power plane, while an optimized 6-layer board can have two ground planes, providing a more complete return path and shielding for high-speed signals, significantly improving EMC performance.
Q2: What impedance tolerance can TOPFAST guarantee for controlled impedance boards? A: At TOPFAST PCB, with our advanced impedance testing systems and strict process control, we commit to a standard control tolerance of ±10%. For boards with stricter requirements, we can achieve ±7% or even ±5%, depending on the stack-up structure and materials. Please inform our sales engineers of your requirements.
Q3: How do I choose the right PCB material for my project? A: For digital circuits:
< 5 Gbps: Standard FR-4 is usually sufficient.
> 5 Gbps: Consider Mid-Loss/Low-Loss FR-4.
> 25 Gbps: Must use Low-Loss/Ultra-Low-Loss materials (e.g., Megtron 6, Rogers series).
For RF circuits, prioritize dielectric constant stability and low loss tangent. If you are unsure, TOPFAST PCB’s technical support team can provide free selection consultation.
Q3: My design has multiple power rails. Can I split a single power plane, and what are the risks? A: Yes, splitting a single power plane for multiple rails is common practice. The key risk is signal integrity degradation if a high-speed signal trace crosses over a split in the plane, as this creates a large return current loop and increases EMI. To mitigate this:
Route critical signals only over a solid reference plane (preferably ground).
If a signal must cross a split, place a stitching capacitor near the signal via to provide a high-frequency return path.
Follow the 20H rule (where the power plane is recessed 20 times the dielectric thickness from the ground plane edge) to reduce fringing effects.
Q4: How early should I involve my PCB manufacturer in the stack-up design process? A: As early as possible. Engaging with TOPFAST PCB during the initial stack-up planning phase allows our engineers to provide immediate feedback on material availability, process capabilities (like minimum dielectric thickness), and cost-effective structural options. This early collaboration can prevent costly redesigns and significantly accelerate your time to market.
Q5: When should I consider moving from standard FR-4 to a more advanced PCB material? A: Consider moving beyond standard FR-4 when your design faces these challenges:
Signal Loss: When operating above 5 Gbps, or when the total channel insertion loss threatens your system’s bit error rate budget.
Thermal Management: When high power levels cause a significant temperature rise, and you need a material with a higher Glass Transition Temperature (Tg) or lower Thermal Expansion Coefficient (CTE), such as FR4-TG170 or polyimide.
Dielectric Constant Stability: In sensitive RF applications where you need a material with a stable Dk over a wide frequency range to maintain consistent impedance and phase response.
Conclusion
PCB stack-up design is an art that combines electromagnetic theory, materials science, and manufacturing processes. Every decision, from the basic principles to advanced strategies for high-speed and high-frequency challenges, directly impacts the final performance of your product.
Mastering this knowledge gives you the initiative to enhance your designs. However, a truly robust, manufacturable design relies on close collaboration with a manufacturing partner possessing profound process knowledge and engineering support capabilities.
TOPFAST PCB is precisely the partner you need. We not only provide high-quality PCB fabrication services but also strive to be an extension of your engineering team. Through professional DFM Analysis and technical support, we help you optimize your stack-up, avoid pitfalls, and ensure a seamless transition from design to product.
Take Action Now!
When you’re ready, we cordially invite you to send your design files to TOPFAST PCB and experience a truly technology-driven, quality-assured PCB manufacturing service. Let’s work together to make your next design impeccable, from blueprint to reality.
