Full Process for Halogen-Free PCB Certification

What is the certification process for halogen-free PCBs?

The certification process for halogen-free PCBs is primarily based on international standards (such as IEC 61249-2-21) and industry specifications (e.g., JPCA-ES-01-2003), and is completed through third-party testing organizations (like SGS). Below are the core steps and standard requirements:

I. Certification Standards and Limit Requirements

• IEC 61249-2-21 Standard
  • Limits: Chlorine (Cl) ≤ 900 ppm, Bromine (Br) ≤ 900 ppm, Total Halogens (Cl + Br) ≤ 1500 ppm.
  • Scope: Applicable to PCB base materials, copper-clad laminates, and other electronic materials.
• JPCA-ES-01-2003 Standard
  • Limits are consistent with IEC 61249-2-21: Cl, Br each ≤ 0.09% by weight (900 ppm), Total ≤ 0.15% (1500 ppm).
  • Definition: Copper-clad laminates meeting these limits are defined as halogen-free PCBs.

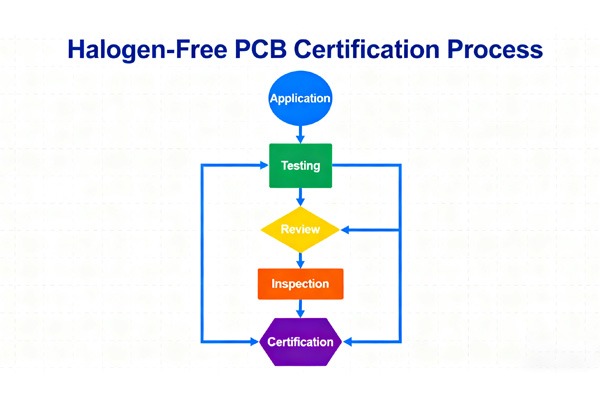

II. Testing Process and Steps

1. Sample Preparation
   • Sampling according to ISO 2859; PCB materials are crushed into particles < 1 mm.
   • Contamination must be avoided to ensure sample representativeness.
2. Instrumental Analysis
   • Ion Chromatography (IC): The sample is combusted, and halogen content is quantitatively analyzed using an ion chromatograph.
   • X-ray Fluorescence Spectrometry (XRF): Used for rapid screening, but with lower accuracy.
   • Combustion-Ion Chromatography (C-IC): Provides high accuracy for total halogen detection, suitable for complex samples.
3. Data Processing and Verification
   • Compare test data against standard limits to generate a preliminary report.
   • Laboratories typically perform cross-verification of results to ensure accuracy.
4. Report Issuance
   • The report includes individual halogen contents, total halogen content, and a conclusion on compliance with standards.
   • Organizations like SGS often attach supporting materials such as spectra and calibration curves.

III. Third-Party Certification Marks

• SGS Certification: After passing the tests, the company receives an SGS halogen-free test report, indicating Cl/Br content and compliance.
• Other Organizations: Similar certifications are available from bodies like UL and TÜV, following largely similar processes.

IV. Key Considerations

• Material Traceability: Provide complete documentation of raw material ratios to avoid contamination in the supply chain.
• Regular Sampling Inspection: Conduct quarterly production line audits to ensure process stability.
• Standard Updates: Stay informed about revisions to regulations like EU RoHS and promptly adjust testing requirements accordingly.

What is the validity period of halogen-free PCB certification?

The validity period of halogen-free PCB certification varies depending on the certification type and specific requirements, mainly falling into the following two categories:

1. Environmental Compliance Test Reports (e.g., RoHS/REACH)
   • Validity Period: Typically 1 year.
   • Important Notes:
     • If the EU SVHC (Substances of Very High Concern) list is updated, retesting may be required to maintain the report’s validity.
     • Some customers may request shorter validity periods (e.g., six months or per batch); the specific requirements of the purchasing party shall apply.
2. Product Safety Certifications (e.g., CQC)
   • Validity Period: The certification is valid for a maximum of 5 years.
   • Maintenance Requirements: To maintain validity, the certificate holder must pass unannounced surveillance audits conducted by the certification body.

Key Distinction

• Environmental Reports (e.g., halogen-free, RoHS) focus on the timeliness of material composition compliance and require regular updates due to potential changes in the supply chain or regulations.
• Safety Certifications (e.g., CQC) focus on the ongoing compliance of the product with safety standards. While the certificate has a longer validity period, it requires regular surveillance audits.

Recommendation: Always confirm the specific validity period based on the certification type and your customer’s contractual requirements, and stay informed about updates to relevant standards.

How long does halogen-free PCB certification take?

The overall timeline for halogen-free PCB certification typically ranges from 2 to 3 months, depending on factors such as the certification type, testing items, and the manufacturer’s cooperation. Below is a general breakdown of the time required for each stage:

1. Key Stages and Time Estimates

• Sample Testing
  • Duration: Approximately 10–15 working days from the lab’s receipt of qualified samples.
  • Notes: If additional tests are involved (e.g., UL flame resistance ratings), samples must be prepared according to the relevant standards, and materials must be consistent with mass production.
• Factory Audit
  • Duration: On-site audit typically takes 1–2 working days, with report issuance taking about 5 working days.
  • Notes: Certain mandatory certifications (e.g., CCC in China) require an on-site assessment of the production process and quality management system.
• Overall Process
  • Simplified Certifications (e.g., derivative applications based on an existing certified product): Can be shortened to around 4 weeks.
  • Complex Projects (e.g., initial UL certification involving multiple performance tests): May extend beyond 3 months.

2. Key Factors Influencing the Timeline

• Time required for sample preparation and shipping.
• Rectification and retesting if any non-conformities are found during testing.
• Scheduling and workload of the certification body.
• Efficiency in document submission and on-site cooperation from the manufacturer.

3. Recommendations

• Begin preparation at least 3 months in advance.
• Confirm in advance that base materials and process parameters meet the target certification requirements (e.g., UL 94 flame retardancy rating, IEC 61249-2-21 halogen-free standards).
• Maintain clear communication with the certification body to ensure information alignment and efficient scheduling.

Approximate Cost of Halogen-Free PCB Certification

The cost of halogen-free PCB certification varies depending on the certification type, product complexity, and chosen agency. Below is a breakdown of estimated costs for major certification programs:

1. CQC Certification (China Quality Certification)

• Application Fee: 600 RMB
• Registration Fee: 1,000 RMB
• Testing Fee: Determined based on product model, technical parameters, and test items (requires a custom quote from the agency).
• Initial Factory Inspection Fee: Approximately 7,500 RMB
• Ongoing Costs: Annual surveillance inspection fees are required after certification is granted.

2. UL Certification (Underwriters Laboratories)

• Fees are not standardized or publicly listed; costs typically include project testing and factory audit fees.
• If the PCB already holds CQC certification, exemptions for certain tests (e.g., random testing) may be possible, potentially saving around 1,800 RMB.
• The specific cost must be determined by contacting a UL-authorized agency (such as UL itself or a partnered lab) for a project evaluation.

3. Other Relevant Certifications

• RoHS Testing: Priced by the number of material types. A single material costs about 600 RMB, while complex products (with multiple materials/components) may exceed 2,500 RMB.
• CCC Certification: If the product falls under the compulsory certification catalog, the total cost is approximately 25,000 RMB (including testing and factory audit fees).

Important Considerations

• The figures above are common market references. Actual costs can be influenced by product structure, updates to testing standards, and other factors.
• If applying for multiple certifications simultaneously, inquire with the agency about combined testing packages to optimize costs.

Recommendation
Contact authoritative testing agencies (such as SGS, CQC, UL, or their authorized labs) directly and provide product documentation to obtain a detailed, project-specific quotation.

Summary

Halogen-free PCB certification is a systematic process involving multiple stages, such as materials, design, manufacturing, and testing. The certification cycle typically takes 2–3 months, with costs varying based on the certification type and product complexity—primarily covering CQC, UL, and other relevant certifications. Validity periods are categorized into environmental reports (usually 1 year) and safety certifications (up to 5 years). Common issues include non-compliant materials, design flaws, process deficiencies, and testing inconsistencies. It is recommended that companies plan, select qualified materials, ensure designs meet specifications, and maintain close communication with certification bodies to successfully complete the certification process.
