Design for Manufacturing (DFM) plays an essential role in successful PCB production. Even a well-designed electronic circuit can encounter problems during fabrication if the layout does not consider real manufacturing constraints.
PCB DFM focuses on aligning design parameters with fabrication capabilities so that boards can be produced consistently, economically, and with high yield. By applying DFM principles early in the design stage, engineers can avoid unnecessary redesign cycles, reduce manufacturing risk, and improve long-term reliability.
This guide explains the fundamentals of PCB Design for Manufacturing and how practical DFM considerations influence PCB fabrication.
What Is PCB Design for Manufacturing (DFM)?
PCB Design for Manufacturing refers to the process of designing printed circuit boards so they can be fabricated efficiently and reliably using existing manufacturing technologies.
DFM considers the physical limitations of fabrication processes, such as:
- imaging and etching
- drilling and plating
- lamination and registration
- solder mask and surface finishing
Rather than focusing only on electrical functionality, DFM ensures that the design can move smoothly from layout to production without unnecessary complications.
Design teams typically evaluate DFM rules alongside standard design checks before releasing manufacturing files.
For a broader understanding of how boards are produced, see PCB Manufacturing Process Explained
Why DFM Matters in PCB Manufacturing
Many manufacturing problems originate during the design stage. When layout parameters fall outside typical process capabilities, fabrication becomes more difficult, and production yield decreases.
Common consequences of poor DFM include:
- higher defect rates
- longer production cycles
- increased fabrication cost
- additional engineering revisions
When DFM principles are considered early, PCB production becomes more predictable. Manufacturers can process the design using standard fabrication workflows, which improves both efficiency and consistency.
Key Objectives of PCB DFM
PCB DFM aims to balance electrical performance with manufacturing feasibility. The main objectives include:
Improve Manufacturability
Design parameters should remain within realistic fabrication tolerances. This reduces process complexity and minimizes production risks.
Increase Production Yield
Optimized layouts reduce common defects such as open circuits, short circuits, and plating issues.
Control Manufacturing Cost
Design decisions influence many cost drivers, including layer count, drill density, and minimum feature sizes.
Enhance Long-Term Reliability
Manufacturable designs typically show better structural integrity and long-term electrical stability.
Reliability considerations are discussed further in the PCB Quality & Reliability Guide

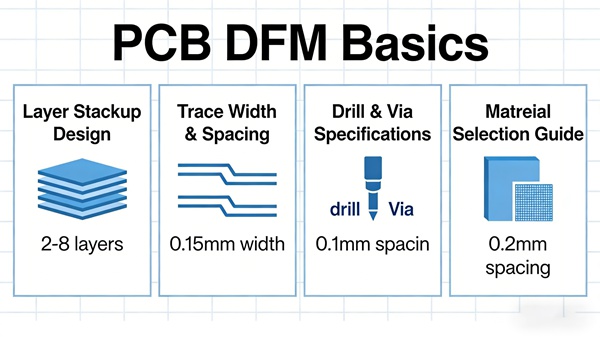

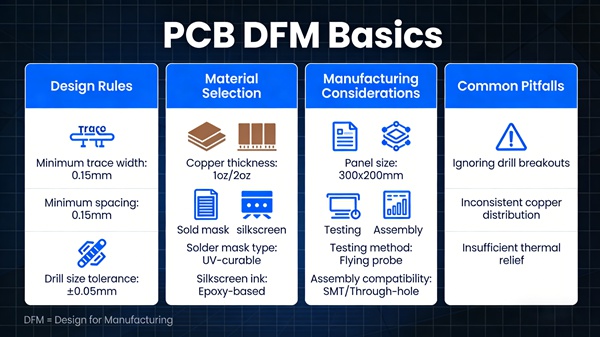

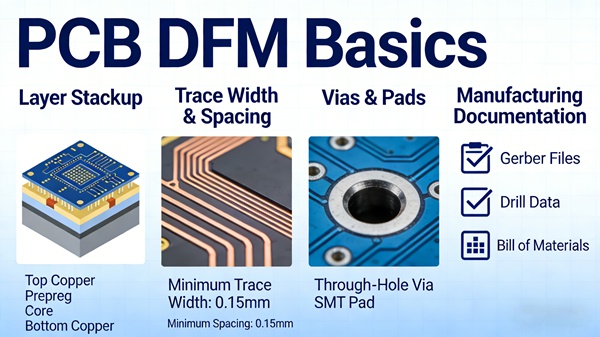

Core PCB DFM Parameters Designers Must Consider
Several design parameters strongly influence manufacturability.
Trace Width and Spacing
Trace width and spacing determine how easily copper patterns can be imaged and etched.
Extremely fine traces may push the limits of the etching process, increasing the chance of opens or shorts. Designers typically select trace dimensions that stay within standard fabrication ranges rather than using minimum tolerances.
More information about the copper pattern formation process can be found in the Etching Process and Yield Control
Drill Hole Size and Via Aspect Ratio
Drilling and plating quality are influenced by hole diameter and board thickness.
If the via aspect ratio becomes too high, plating inside the barrel becomes difficult, which can create weak interconnections. Selecting appropriate drill sizes helps ensure reliable plating and long-term electrical stability.
For more details about drilling technologies, see PCB Drilling vs Laser Drilling
Layer Stack-Up Planning
Layer stack-up design affects:
- impedance control
- lamination stability
- thermal expansion behavior
Unbalanced stack-ups may lead to warpage during lamination or reflow. Using well-proven stack-up structures simplifies both manufacturing and signal integrity control.
The internal layer fabrication process is explained in Inner Layer Fabrication Explained
Copper Balance and Distribution
Copper density variations between layers can cause uneven stress during lamination.
Poor copper balance may lead to:
- board warpage
- uneven etching
- registration problems
Maintaining balanced copper distribution helps stabilize the manufacturing process.
Common PCB DFM Mistakes
Several common design choices can create avoidable manufacturing challenges.
Designing to Absolute Minimum Rules
Although design tools allow minimum spacing or trace widths, using these limits unnecessarily can increase fabrication difficulty.
Ignoring Manufacturer Capabilities
Different PCB manufacturers may have slightly different process capabilities. Aligning the design with typical fabrication capabilities improves yield.
Overly Complex Stack-Ups
Complex stack-ups increase lamination complexity and can affect dimensional stability.
Excessive Via Density
Large numbers of small vias increase drilling and plating complexity, which may affect production throughput.
How Designers Apply PCB DFM in Real Projects
In practice, DFM is rarely treated as a single checklist performed at the end of the design. Instead, it becomes part of the normal layout workflow.
Experienced designers typically begin by understanding realistic fabrication capabilities before routing the board. Rather than pushing trace widths and spacing to minimum limits, they select design rules that provide a comfortable margin within manufacturing tolerances.
Stack-up decisions are also made early. Using standardized layer structures helps maintain consistent impedance control and improves lamination stability during fabrication.
Via design is another important consideration. Extremely small vias or aggressive aspect ratios can complicate plating and increase the risk of reliability issues. Choosing sizes compatible with standard drilling processes usually improves manufacturability.
Before fabrication files are released, design teams typically run a final DFM review. This review examines drill-to-copper clearances, annular rings, copper balancing, and solder mask openings to ensure the layout aligns with fabrication processes.
After file submission, PCB manufacturers usually perform CAM-based DFM checks. These checks verify that the design fits within process capabilities and may identify small improvements that simplify production.
For manufacturers such as TOPFAST, this engineering review step helps ensure that PCB designs transition smoothly from layout files into fabrication without unexpected delays.
PCB DFM vs DRC: Understanding the Difference
Although they are sometimes confused, DFM and DRC serve different purposes.
| Aspect | DRC | DFM |
|---|
| Purpose | Verify electrical rules | Evaluate manufacturing feasibility |
| Tool | CAD software | CAD + CAM engineering |
| Timing | During layout | Before fabrication |
| Focus | Design correctness | Production capability |
DRC ensures that the circuit is electrically valid, while DFM ensures that the design can be fabricated reliably.
Related Articles About PCB Manufacturing
Understanding DFM becomes easier when it is viewed together with other PCB manufacturing topics.
You may also find these articles helpful:
These resources provide additional context about how PCB designs translate into real manufacturing processes.
Conclusion
PCB Design for Manufacturing ensures that a board can move from design to fabrication without unnecessary risk or complexity.
By considering manufacturing capabilities during the layout stage, designers can improve production yield, reduce fabrication cost, and create more reliable electronic products.
DFM is therefore not only a design guideline but also an important bridge between engineering design and practical manufacturing.
PCB Design for Manufacturing FAQ
Q: What does DFM mean in PCB design? A: DFM stands for Design for Manufacturing. It refers to designing PCBs in a way that ensures they can be fabricated efficiently and reliably using available manufacturing processes.
Q: When should PCB DFM checks be performed? A: DFM checks should ideally begin during the layout stage and continue before releasing manufacturing files. Early review helps prevent costly redesigns later in the production process.
Q: What are common PCB DFM problems? A: Typical issues include trace spacing below fabrication limits, insufficient annular rings, excessive via aspect ratios, and unbalanced copper distribution.
Q: Is DFM only important for large production runs? A: No. DFM is equally important for prototypes because design problems discovered early can prevent larger issues in future production.
Q: Can PCB manufacturers perform DFM checks? A: Yes. Most PCB manufacturers perform CAM-based DFM analysis before production to ensure that the design fits within their fabrication capabilities.
