Before PCB fabrication begins, design files must go through a Design for Manufacturing (DFM) review. Even well-designed circuits can encounter production issues if layout parameters fall outside fabrication capabilities.
A structured DFM checklist helps engineers verify that the board layout is ready for manufacturing. This review stage reduces the risk of production delays, design revisions, and yield loss.
This article outlines a practical PCB DFM checklist that designers can use before submitting Gerber or ODB++ files to a PCB manufacturer.
Why a PCB DFM Checklist Is Important
In many projects, layout design is completed under tight development schedules. As a result, manufacturability checks are sometimes performed too late or only partially.
A DFM checklist ensures that key parameters are reviewed systematically before fabrication.
Benefits of performing a structured DFM review include:
- preventing fabrication errors
- improving manufacturing yield
- Reducing engineering revision cycles
- ensuring compatibility with production capabilities
For a broader introduction to DFM principles, see PCB DFM Basics: Design for Manufacturing Guidelines
Key Areas Covered in a PCB DFM Review
A typical DFM review focuses on several important areas of the PCB layout.
These include:
- trace width and spacing
- drill sizes and via structures
- layer stack-up definition
- copper balancing
- solder mask openings
- board outline and mechanical tolerances
Each of these parameters affects the manufacturability of the board.

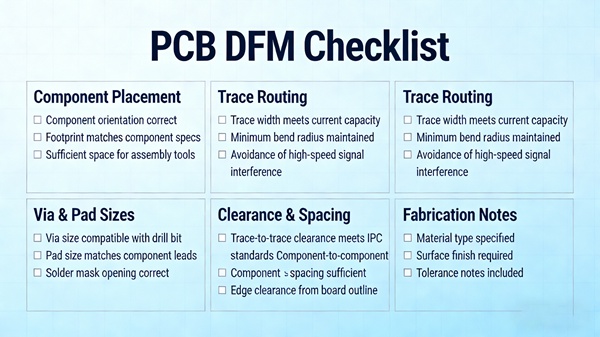

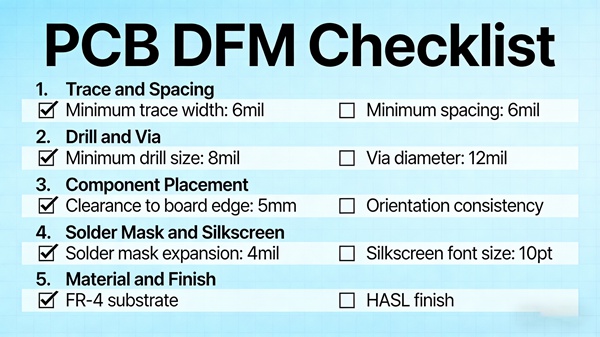

PCB DFM Checklist for Fabrication Readiness
The following checklist summarizes common items engineers review before releasing PCB fabrication files.
Trace Width and Spacing
Verify that trace widths and spacing comply with the intended fabrication capability.
Designs that use extremely fine traces may increase the risk of open circuits during etching.
Typical checks include:
- minimum trace width
- minimum trace spacing
- spacing between copper features and board edges
- clearances between high-voltage nets
The copper imaging and etching process is explained in Etching Process and Yield Control
Drill Hole and Via Design
Drilling parameters strongly influence plating reliability and electrical connectivity.
Key items to verify include:
- minimum drill diameter
- via aspect ratio (board thickness vs hole size)
- annular ring width
- via-to-via clearance
Designs with extremely small vias may require advanced drilling processes.
More details can be found in PCB Drilling vs Laser Drilling
Layer Stack-Up Definition
Before fabrication begins, the layer stack-up must be clearly defined.
Stack-up review usually confirms:
- layer count
- copper thickness
- dielectric material
- controlled impedance requirements
Using standard stack-ups helps simplify lamination and improve manufacturing consistency.
For a deeper explanation of internal layer processing, see Inner Layer Fabrication Explained
Copper Balance and Plane Distribution
Large copper imbalances between layers may cause warpage during lamination.
Designers should check for:
- large copper-free areas
- uneven plane distribution
- isolated copper islands
Balanced copper distribution stabilizes the lamination process and improves dimensional accuracy.
Solder Mask and Pad Definition
Solder mask parameters influence assembly reliability and inspection results.
Typical checks include:
- solder mask clearance around pads
- solder mask bridge width
- mask openings on fine-pitch components
Improper mask openings can lead to solder bridging during assembly.
Board Outline and Mechanical Features
Mechanical features must be clearly defined before fabrication.
DFM review typically verifies:
- board outline accuracy
- slot and cutout dimensions
- tooling holes
- fiducial marks
Clear mechanical drawings help prevent manufacturing misunderstandings.
How Engineers Perform a Practical DFM Review
In real projects, engineers usually perform DFM checks in two stages.
First, the design team reviews the layout within the PCB design software. Automated rule checks identify many issues, such as clearance violations and minimum feature sizes.
Next, the design files are exported and reviewed from a manufacturing perspective. Engineers examine drill tables, stack-up documentation, and fabrication notes to confirm that the board can be produced using standard processes.
After files are submitted, PCB manufacturers typically perform a CAM-based DFM analysis. If potential manufacturability risks are detected, they may suggest small adjustments before fabrication begins.
Manufacturers such as TOPFAST commonly provide this engineering review to help ensure that PCB designs move smoothly into production.
Common Issues Found During DFM Reviews
DFM checks often reveal issues that may not affect electrical performance but can complicate fabrication.
Examples include:
- insufficient annular rings
- copper features too close to board edges
- incorrect solder mask openings
- drill sizes outside standard tool ranges
- unclear fabrication notes
Addressing these issues early prevents production delays and redesign cycles.
Related Articles About PCB Manufacturing
The following articles provide additional context about PCB fabrication and manufacturability.
PCB DFM Basics: Design for Manufacturing Guidelines
PCB Manufacturing Process Explained
PCB Drilling vs Laser Drilling
Copper Plating Process in PCB Manufacturing
These topics help explain how design choices affect fabrication processes and production reliability.
Conclusion
A structured PCB DFM checklist helps ensure that a design is ready for fabrication before files are submitted to a manufacturer.
By reviewing key parameters such as trace dimensions, drill sizes, stack-up configuration, and copper distribution, engineers can significantly reduce manufacturing risk.
DFM checks also help align design intent with real fabrication processes, improving both yield and long-term product reliability.
FAQ: PCB DFM Checklist
Q: What files are usually checked during a PCB DFM review? A: DFM reviews typically analyze Gerber files, drill files, stack-up documentation, and fabrication notes to confirm manufacturability.
Q: Do all PCB manufacturers perform DFM checks? A: Most professional PCB manufacturers perform CAM-based DFM analysis before production to ensure the design fits their manufacturing processes.
Q: What is the most common DFM issue in PCB layouts? A: Common issues include insufficient annular rings, traces too close to board edges, and drill sizes outside standard tooling ranges.
Q: Should DFM be performed before or after generating Gerber files? A: DFM should ideally be performed both during layout and after generating manufacturing files to ensure the design remains manufacturable.
Q: Does a DFM checklist reduce PCB manufacturing cost? A: Yes. Designs optimized for manufacturability typically reduce scrap rate, improve yield, and simplify production processes.
