PCB Electrical Testing Explained

Visual inspection alone cannot guarantee that a PCB functions electrically.

Even when a board:

  • Looks perfect under AOI
  • Shows no internal voids under X-ray

It may still contain open circuits, shorts, or marginal connections that only electrical testing can detect.

Electrical testing (E-Test) verifies the actual electrical integrity of a PCB before assembly or shipment.

Inspection sequence:
AOI Inspection in PCB Manufacturing
X-Ray Inspection in PCB Manufacturing

PCB Electrical Testing

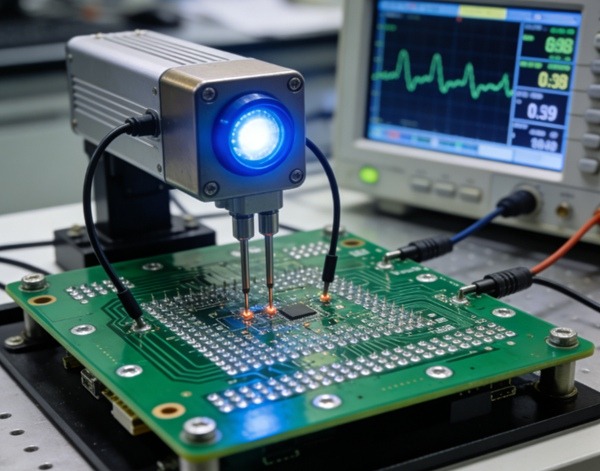

What Is PCB Electrical Testing?

PCB electrical testing applies electrical signals to a bare PCB to verify:

  • Continuity of all nets
  • Absence of unintended shorts
  • Conformance to design connectivity

Unlike AOI or X-ray, E-Test directly evaluates electrical functionality, not physical appearance.

Defects Detected by Electrical Testing

Electrical testing is effective at identifying functional defects, including:

  • Open circuits
  • Short circuits
  • Incorrect net connections
  • Broken traces
  • Missing vias

Many of these defects may be invisible or ambiguous under visual inspection.

Root causes:
PCB Manufacturing Defects and How to Prevent Them

Common Electrical Testing Methods

Fixture-Based (Bed-of-Nails) Testing

How It Works

  • A dedicated fixture contacts predefined test points
  • Signals are applied simultaneously to multiple nets

Advantages

  • Fast test speed
  • Suitable for high-volume production

Limitations

  • High upfront fixture cost
  • Less flexible for design changes

Flying Probe Testing

How It Works

  • Movable probes contact test points sequentially
  • No dedicated fixture required

Advantages

  • Low setup cost
  • Ideal for prototypes and low volume

Limitations

  • Slower test time
  • Limited scalability

Method comparison:
Flying Probe vs Fixture Testing

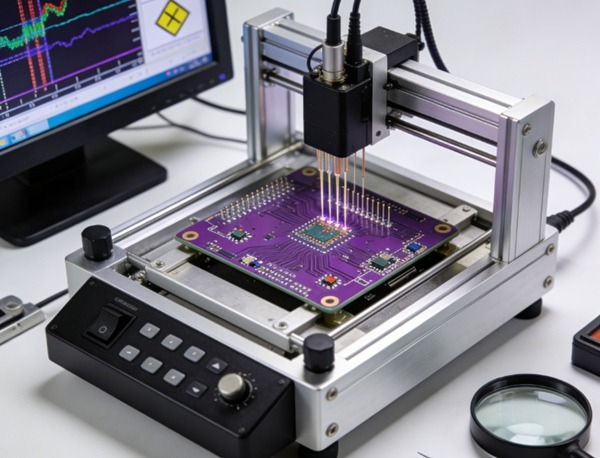

PCB Electrical Testing

What Electrical Testing Cannot Detect

Electrical testing has clear boundaries.

Limitations of E-Test

  • Cannot assess copper thickness
  • Cannot detect internal voids
  • Cannot predict long-term reliability
  • Cannot identify cosmetic issues

For example, a via with thin copper plating may pass E-Test but fail after thermal cycling.

Reliability risk:
PCB Reliability Testing Explained

Electrical Testing vs Inspection Methods

AspectAOIX-RayElectrical Test
Detects opens/shortsLimitedLimited
Detects internal voids
Functional verification
Predicts reliability

Each method addresses a different risk category.

When Electrical Testing Is Applied

Electrical testing is typically performed:

  • After PCB fabrication
  • Before assembly
  • Before shipment

In some cases, testing is repeated after repair or rework.

Test Coverage and Netlist Accuracy

Electrical testing accuracy depends on:

  • Correct netlist data
  • Accessible test points
  • Stable probe contact

Designs with:

  • Insufficient test pads
  • Extremely fine features

may reduce test coverage or increase false failures.

Design impact:
PCB Design Guidelines and Testability

Electrical Testing and Yield Control

Electrical testing plays a key role in:

  • Screening out defective boards
  • Providing feedback to manufacturing
  • Identifying recurring defect patterns

Test data is often used to:

  • Improve drilling accuracy
  • Optimize plating parameters
  • Refine etching control

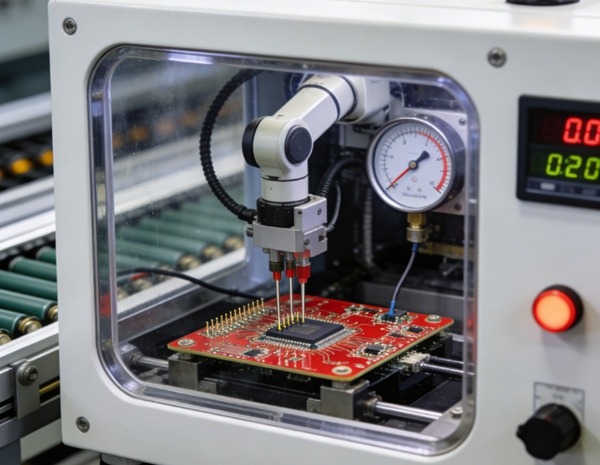

PCB Electrical Testing

Electrical Testing Cost Considerations

Electrical testing adds cost, influenced by:

  • Board complexity
  • Test method selection
  • Volume and coverage requirements

However, skipping the E-Test increases the risk of:

  • Assembly failures
  • Field returns
  • Warranty claims

Cost perspective:
PCB Manufacturing Cost vs Quality Trade-offs

How Electrical Testing Fits into a Quality System

A robust PCB quality system integrates:

  • AOI for surface defects
  • X-ray for internal inspection
  • Electrical testing for connectivity
  • Reliability testing for long-term behavior

At TOPFAST, electrical testing is treated as a mandatory functional gate, tailored to volume and application needs.

Conclusion

PCB electrical testing is the only method that directly verifies electrical connectivity.

While it cannot detect every defect, it is essential for ensuring that a PCB:

  • Functions as designed
  • Is safe for assembly
  • Meets baseline quality requirements

This article represents the third core component of the PCB Inspection & Testing cluster.

PCB Electrical Testing FAQ

Q: Is electrical testing required for all PCBs?

A: Not always, but strongly recommended for most designs.

Q: Can electrical testing detect reliability problems?

A: No. It only verifies current electrical integrity.

Q: Which is better: flying probe or fixture testing?

A: It depends on volume, complexity, and cost constraints.

Q: Can a PCB pass E-Test and still fail later?

A: Yes, due to latent defects or reliability issues.

Q: When should E-Test be skipped?

A: Only for very low-risk, low-cost applications after careful evaluation.
