Why are PCBs grounded to metal chassis using resistive capacitive connections?

Why are PCBs grounded to metal chassis using resistive capacitive connections?

1. Core Objectives of RC Connection

1.1 Electromagnetic Compatibility (EMC) Requirements

  • High-frequency noise suppression: Provides a low-impedance path for noise above 30MHz (capacitor function)
  • Low-frequency isolation: Blocks 50Hz power interference (high resistance characteristic)
  • Typical parameters: 1-100nF/Y-capacitor + 1-2MΩ resistor

1.2 Safety Protection Requirements

  • ESD discharge: 1MΩ resistor meets IEC61000-4-2 standard (discharges 2kV static in ≤10 seconds)
  • Leakage current control: Limits current to ≤0.1mA (compliant with UL1950)

Need professional EMC design support? Click to consult our EMC expert team and get customized solutions.

resistor-capacitor connection

2. Key Functions and Selection of Capacitors

2.1 High-Frequency Noise Management

  • Y-capacitor selection:
  • Medical devices: Prioritize Y1 class (8kV withstand voltage)
  • Consumer electronics: Y2 class (5kV) for better cost-performance
  • Capacitance impact:
  • 1nF capacitor: ~3.2MΩ impedance at 50Hz (effective isolation)
  • 100nF capacitor: ~0.016Ω impedance at 100MHz (low-impedance path)

2.2 Hazardous Voltage Isolation

  • Safety standards:
  • Reinforced insulation: ≥2.5kV withstand voltage (IEC62368-1)
  • Creepage distance: ≥6mm (220VAC systems)

3. Resistor Design for Protection Mechanisms

3.1 ESD Protection

ParameterStandard ValueTest Standard
Resistance1MΩ±5%IEC61000-4-2
Discharge Time≤10 seconds2kV contact discharge
Temp Coefficient≤50ppm/℃JEDEC JESD22

3.2 Current Limiting Protection

  • When the chassis has 1kV static:
  • Direct connection current: Theoretical ∞ (dangerous)
  • 1MΩ resistor current: 1mA (safe range)

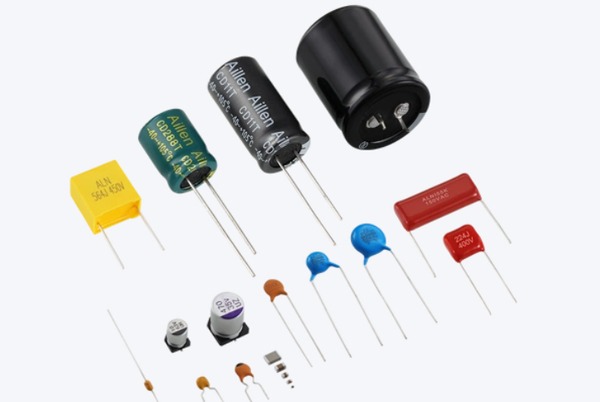

resistor-capacitor connection

4. Engineering Practices and Test Verification

4.1 Typical Connection Scheme

PCB_GND ────┬──── 1MΩ ──────┬─── EGND
             │                │
             └── 100nF/Y2 ───┘

4.2 Key Test Items

  1. Withstand Voltage Test: 3kVAC/60s (between GND and EGND)
  2. Radiated Emission: 30MHz-1GHz band (must be <30dBμV/m)
  3. ESD Test: ±8kV contact discharge (Class A criteria)

Limited Offer:  Contact Engineers

5. Industry Applications and Optimization

5.1 Parameter Selection by Application

ApplicationCapacitor TypeResistor ValueSpecial Requirements
MedicalY1/10nF2MΩIEC60601-1 compliance
IndustrialY2/47nF1MΩEnhanced surge protection
ConsumerX7R/1nF1.2MΩCost-optimized

5.2 Reliability Enhancement

  • Advanced solution: Parallel TVS diode (e.g., SMBJ15CA)
  • Layout optimization: Use 0201 package to save 30% PCB space

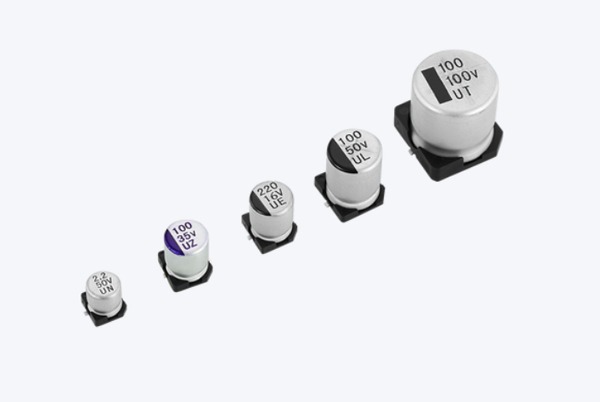

resistor-capacitor connection

The resistor-capacitor connection achieves a balance between safety isolation and EMC performance through precise parameter design (1MΩ+100nF is the optimal combination). In actual design, it is necessary to comprehensively optimize based on safety standards (such as IEC62368), test data, and cost factors. This solution has become a standard practice in fields such as consumer electronics and medical equipment.
