PCBA (Printed Circuit Board Assembly) refers to the entire process of assembling printed circuit boards, including component installation on blank PCB boards through Surface Mount Technology (SMT) and Dual In-line Package (DIP) technology to complete the assembly process. Unlike simple PCB boards, PCBA represents circuit components with all electronic components installed and full functionality.
Distinction Between PCBA and Related Terms
| Term | Full Name | Meaning |
|---|
| PCB | Printed Circuit Board | Refers only to blank circuit boards without components |
| PCBA | Printed Circuit Board Assembly | Circuit boards with all components assembled |
| PCA | Printed Circuit Assembly | Synonymous with PCBA, referring to assembled circuit components |
Core Process Flow of PCBA Processing
1. SMT Processing
SMT Processing Flow:
- Solder Paste Printing: Precise printing of solder paste onto PCB pads through a stencil
- SPI Inspection: Using solder paste inspection to ensure printing quality
- Component Placement: Precise placement of components by pick-and-place machines
- Reflow Soldering: Completion of the soldering process through the reflow oven
- AOI Inspection: Automatic optical inspection to ensure placement quality
Key Technical Points:
- Solder paste needs to be taken out of refrigeration and fully tempered by stirring
- Placement machine accuracy directly affects assembly quality
- Reflow soldering temperature profile requires precise control

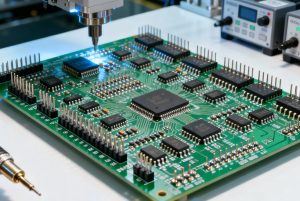

2. DIP Plug-in Processing
DIP Plug-in Processing Steps:
- Component Insertion → Wave Soldering → Pin Trimming → Post-soldering Processing → Cleaning → Inspection
Process Characteristics:
- Suitable for large, high-power, or high-temperature resistant components
- Provides a stronger mechanical connection strength
- Wave soldering parameters need precise control to prevent bridging or cold soldering
Four Pillars of PCBA Quality Control
1. Visual Inspection
- Check the board surface for damage, deformation, oxidation
- Verify solder joint quality, component installation position
- Confirm clear and accurate identification
2. Functional Testing
3. Environmental Reliability Testing
- Temperature and Humidity Testing: Verify product stability under different environments
- Vibration and Shock Testing: Ensure mechanical reliability
- Aging Testing: Simulate long-term usage conditions
4. Advanced Detection Technology Applications
AOI Automatic Optical Inspection:
- Detection accuracy reaches the micron level
- Can inspect hundreds of boards per hour
- Capable of identifying component offset, solder joint defects, and other issues
X-Ray Inspection:
- Penetrative inspection of hidden solder joints like BGA, QFN
- Detect internal voids, cold soldering, and other defects
- Particularly suitable for high-density assembly boards
Special Processes in PCBA Processing
Conformal Coating Process
Coating Method Comparison:
| Method | Suitable Scenarios | Advantages | Disadvantages |
|---|
| Brushing | Small batch, local protection | High flexibility | Low efficiency, poor consistency |
| Spraying | Mass production | High efficiency, good coverage | Requires mask protection |
| Dipping | Comprehensive protection | Complete coverage | Material waste |
| Selective Coating | Complex boards | Precise control | High equipment cost |
Cleaning Technology
- Ultrasonic Cleaning: Utilizes the cavitation effect to remove micro contaminants
- Spray Cleaning: Suitable for mass automated production
- Online Cleaning Machines: Integrated into production lines to improve efficiency
PCBA Industry Development Trends and Technological Innovation
Technology Development Directions
- High-Density Interconnection (HDI): Development towards finer line width/spacing
- Embedded Component Technology: Embedding components inside PCBs
- Flexible PCB Applications: Adapting to emerging fields like wearable devices
- Environmental Protection Processes: Halogen-free materials, lead-free soldering
Material Innovation
- High-Frequency Materials: Meeting 5G, millimeter wave application requirements
- High Thermal Conductivity Materials: Solving high-power-density heat dissipation problems
- Environmentally Friendly Substrates: Complying with RoHS, REACH, and other regulations
Practical PCBA Design Recommendations
Key Considerations in Design Phase
- DFM (Design for Manufacturing): Ensure designs meet production process capabilities
- DFA (Design for Assembly): Optimize component layout for easy assembly
- DFT (Design for Test): Reserve test points for subsequent detection
- Thermal Management Design: Reasonably plan heat dissipation paths
Common Problem Prevention
- Soldering Defects: Reduce bridging, cold soldering through optimized pad design
- Signal Integrity: Strictly control impedance matching, reduce crosstalk
- Electromagnetic Compatibility: Improve grounding design, add shielding measures
Key Factors in Choosing PCBA Suppliers
Technical Capability Assessment
- Minimum SMT placement accuracy
- BGA rework capability
- Completeness of testing equipment
- Quality control system certification
Service Capability Considerations
- Prototype sampling speed
- Mass production capacity
- Supply chain management capability
- Technical support level
Conclusion
As the core link in electronic manufacturing, PCBA processing quality directly determines the performance and reliability of final products. By understanding the complete PCBA process flow, mastering quality control methods, and paying attention to industry technology development trends, enterprises and engineers can make wiser decisions and produce more competitive electronic products. As electronic technology develops towards high frequency, high speed, and miniaturization, requirements for PCBA technology will continue to increase. Continuous learning and innovation are key to maintaining competitiveness.
