When preparing for a new PCB project, substrate selection is often the most underestimated yet critical step. Just like choosing the right foundation before building a house, PCB substrate directly impacts the board’s performance, reliability, and cost. This article will delve into key considerations for PCB substrate selection and answer five common substrate-related questions engineers frequently encounter.
Why Is PCB Substrate Selection So Important?
Imagine you’re designing a high-performance smartwatch. Choosing the wrong substrate could lead to signal distortion, increased power consumption, or even cracking after just a few months of use. That’s why understanding PCB substrate characteristics is crucial.
PCB substrate isn’t just a “carrier” for electronic components—it directly affects:
- Signal transmission quality
- Thermal management capability
- Mechanical strength
- Environmental adaptability
- Production costs

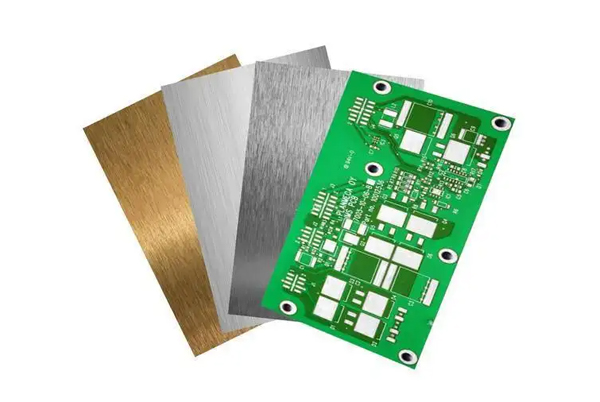

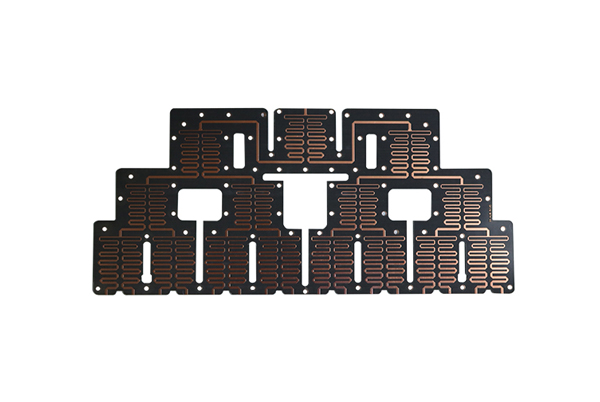

Main Types of PCB Substrates and Their Applications
FR-4: The “Versatile Workhorse” of the Electronics Industry
FR-4 (fiberglass-reinforced epoxy resin) is the “bread and butter” of the PCB world, accounting for about 80% of the market share. In my experience, over 90% of consumer electronics use this material.
Advantages:
- Excellent cost-effectiveness (30-50% cheaper than other high-performance materials)
- Good mechanical strength and insulation properties
- Mature processing technology
Disadvantages:
- Average high-frequency performance (dielectric constant ~4.3-4.8)
- Limited high-temperature resistance (typically around 150°C)
Applications: Most consumer electronics, industrial control boards, LED lighting, etc.
Selection Tip: Distinguish between standard FR-4 and high-Tg FR-4. If your board requires lead-free soldering (higher temperatures), choose a model with Tg≥170°C.
Polyimide (PI): The King of Flexible Circuits
When your design requires bending or folding, polyimide substrates come into play. I worked on a wearable health monitoring device where PI’s flexible properties allowed us to integrate circuits into the wristband.
Advantages:
- Excellent flexibility (can bend thousands of times without failure)
- High-temperature stability (can withstand over 300°C)
- Outstanding chemical stability
Disadvantages:
- High cost (3-5 times more expensive than FR-4)
- Difficult to process
Applications: Flexible circuits, aerospace electronics, medical implant devices, etc.
Selection Tip: Differentiate between adhesive and non-adhesive PI substrates. The former is cheaper but has poorer high-temperature performance, while the latter is the opposite.

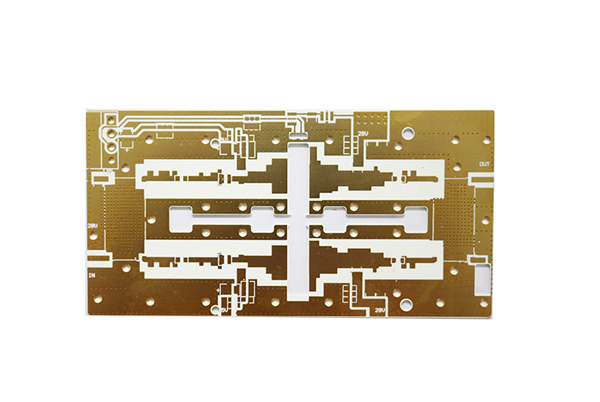

High-Frequency Specialty Materials: When Signal Speed Is Critical
For high-frequency applications like 5G base stations and radar systems, standard FR-4 causes significant signal loss. In these cases, consider high-frequency materials like Rogers RO4000 series or Taconic TLY series.
Key Parameters:
- Dielectric constant (Dk): Lower is better (2.2-3.5 is ideal)
- Loss factor (Df): Smaller is better (<0.004 is ideal)
Cost Consideration: High-frequency materials can cost 10-20 times more than FR-4, so hybrid designs are common—critical signal layers use high-frequency materials while other layers use FR-4.
Copper Foil Selection: It’s Not Just About Thickness
Copper foil is the core conductive element of PCBs. Poor selection can lead to signal integrity issues and manufacturing defects. Based on my experience, copper foil problems account for about 15% of PCB failure cases.
Electrolytic Copper Foil (ED) vs. Rolled Copper Foil (RA)
Electrolytic Copper Foil (ED):
- Lower production cost
- Higher surface roughness (better for bonding with substrate)
- Suitable for standard multilayer boards
Rolled Copper Foil (RA):
- Smoother surface (reduces high-frequency signal loss)
- Better flexibility
- 20-30% higher cost
Practical Advice: For circuits above 10GHz, prioritize rolled copper foil; flexible circuits must use rolled copper foil.
Copper Foil Thickness Selection Guide
Common copper foil thicknesses:
- 1/2 oz (18μm)
- 1 oz (35μm)
- 2 oz (70μm)
Rule of Thumb:
- Standard digital circuits: 1 oz
- High-current power circuits: ≥2 oz
- Ultra-fine traces (<4mil): 1/2 oz
Note: Thicker copper foil makes etching more challenging and trace width control more difficult.
Key Considerations for Auxiliary Materials
Solder Mask: More Than Just Color
The solder mask layer does more than just “look pretty.” I once encountered a case where cheap solder mask ink caused bridging defects during batch soldering.
Selection Points:
- Liquid photoimageable (LPI) vs. dry film solder mask
- Color selection: Green is most common (easy for inspection), black has better heat dissipation but is harder to inspect
- Dielectric strength: ≥1000V/mil
Comparison of Surface Finish Processes
Different surface finishes directly affect soldering quality and long-term reliability:
| Process | Cost | Solderability | Shelf Life | Applications |
|---|
| HASL | Low | Good | 12 months | Consumer electronics |
| ENIG | Medium | Excellent | 24 months | BGA packages |
| OSP | Low | Fair | 6 months | Low-cost boards |
| Immersion Silver | Medium | Excellent | 12 months | High-frequency circuits |
Recommendation: BGA packages must use ENIG; high-frequency signals should prioritize immersion silver; cost-sensitive and short production cycles should choose OSP.
Five Key Considerations for PCB Substrate Selection
- Electrical Performance Requirements
- Operating frequency: >1GHz requires high-frequency materials
- Signal integrity requirements
- Impedance control precision
- Mechanical and Environmental Requirements
- Need for flexible or rigid-flex design
- Operating temperature range
- Vibration/shock conditions
- Need for high thermal conductivity materials
- Coefficient of thermal expansion (CTE) matching
- Material cost
- Processing difficulty
- Yield impact
- Material availability
- Lead time
- Supplier technical support
PCB Substrate Issues and Solutions
Issue 1: How to Balance High-Frequency Performance and Cost?
Q: Our 5G small cell project requires good high-frequency performance but has a limited budget. How should we choose the substrate?
A: This is a classic cost-performance tradeoff. I recommend a “hybrid stackup” approach:
- Use Rogers RO4350B for critical signal layers (~10x the cost of FR-4)
- Use FR-4 for other layers
- Determine the minimum number of high-frequency layers through simulation
A recent client employed this approach, reducing material costs by 40% while maintaining a signal loss increase of only 5%, which is well within acceptable limits.
Issue 2: How to Prevent Substrate Delamination During High-Temperature Soldering?
Q: Our product uses lead-free processes, and we often encounter substrate delamination during production. How can we solve this?
A: This is a typical symptom of improper Tg selection. Solutions:
- Confirm the Tg value of your current FR-4 (standard FR-4 is usually 130-140°C)
- Upgrade to high-Tg material (Tg≥170°C)
- Optimize the reflow soldering temperature profile
- Consider medium-Tg materials as a transitional solution
Cost Impact: High-Tg materials cost 15-20% more than standard FR-4 but are far cheaper than scrap and rework costs.
Issue 3: Frequent Flex Circuit Breakage—How to Fix?
Q: The flexible circuits in our wearable devices often break at bend points. How can we improve this?
A: This issue involves both material selection and design optimization:
- Switch to thinner polyimide substrates (e.g., 25μm instead of 50μm)
- Use rolled copper foil instead of electrolytic copper foil
- Optimize trace direction in bend areas (make traces perpendicular to bend lines)
- Add stress relief structures
Case Study: A smart wristband project improved bend cycle life from 5,000 to 20,000 cycles with these changes.
Issue 4: How to Control Impedance in High-Speed Circuits?
Q: Our USB 4.0 design always exceeds impedance limits. How can we address this through substrate selection?
A: Impedance control in high-speed circuits requires a multi-pronged approach:
- Choose materials with low dielectric constant variation (Dk tolerance, e.g., ±0.05)
- Use thinner substrates (reduces dielectric thickness variation impact)
- Consider materials with copper foil roughness data
- Work with PCB manufacturers for impedance pre-compensation
Test Data: Switching to Isola FR408HR improved impedance consistency by 35%.
Issue 5: How to Choose Environmentally Compliant Substrates?
Q: Our product will be exported to the EU. How do we ensure substrates comply with environmental regulations?
A: Environmental compliance requires attention at three levels:
- Material itself: Choose halogen-free substrates compliant with RoHS and REACH
- Documentation: Require suppliers to provide full material declarations (FMD)
- Production process: Ensure PCB manufacturers have robust environmental control systems
Practical Tip: Prioritize UL-certified material series, such as Isola’s DE series, which are halogen-free materials.
PCB Substrate Selection Checklist
To help systematize your substrate selection process, here’s a practical checklist:
- Determine the operating frequency range
- Evaluate environmental conditions (temperature, humidity, chemical exposure, etc.)
- Confirm mechanical requirements (flexibility, thickness, etc.)
- List key electrical parameters (impedance, loss, etc.)
- Assess thermal management needs
- Calculate cost constraints
- Check environmental compliance requirements
- Consult at least two PCB manufacturers
- Order material samples for testing
- Create material specification documentation
Future Trends: Innovations in PCB Substrates
Based on industry trends and my observations, PCB substrates are evolving in these directions:
- Higher Frequency: With 5G mmWave and 6G R&D, materials with Dk<2.0 will become more common
- Higher Thermal Conductivity: Materials with >2W/mK conductivity for high-power LEDs and EVs
- More Eco-Friendly: Bio-based resins and recyclable materials will gain market share
- Integration: Composite substrates with embedded capacitors/inductors will reduce component counts
Recommendation: Maintain regular communication with material suppliers to stay updated on new material properties and cost changes.
Conclusion
PCB substrate selection is an art of balance, requiring optimization of performance, reliability, and cost. By understanding different material properties, aligning with application requirements, and learning from industry best practices, you can avoid common selection pitfalls and build a solid “foundation” for your electronic products.
