Description
What is a capacitor?
A capacitor is essentially an electronic component that can store electric charge. It consists of two mutually insulated conductors and a dielectric material in between. When a voltage is applied across the capacitor, positive and negative charges accumulate on the two conductors but do not flow directly, thereby forming an electric field that stores energy. This enables the capacitor to provide a large instantaneous current during power fluctuations, ensuring stable system operation. As an indispensable passive component in circuit design, the importance of capacitors is no less than that of the chips themselves. From smartphones to spacecraft, from medical devices to industrial control systems, capacitors quietly safeguard the stable operation of every electronic product with their unique energy storage characteristics and signal processing capabilities.

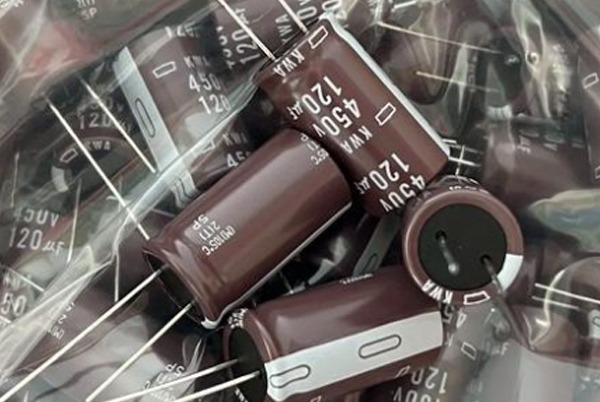

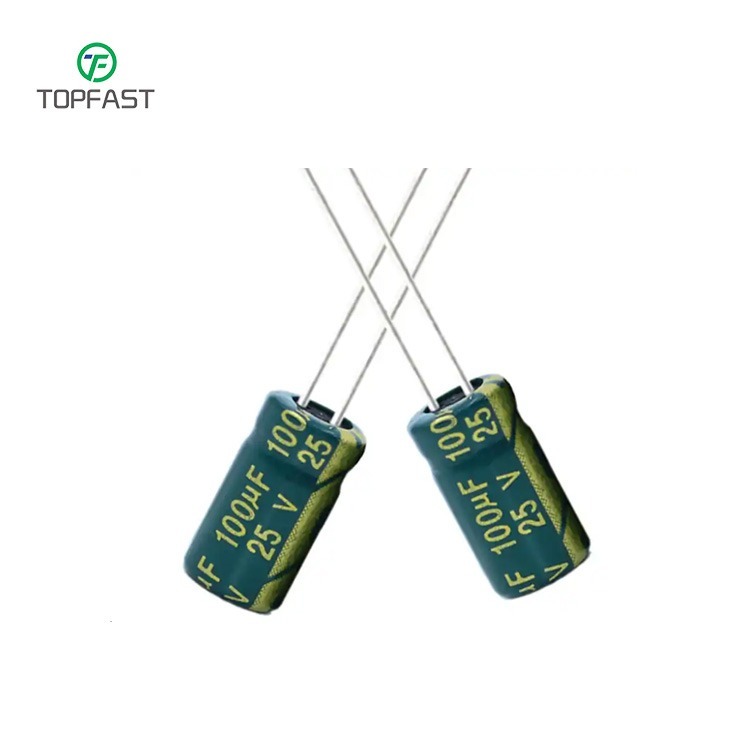

As an industry leader with 17 years of experience in PCB manufacturing and assembly, Topfast understands the critical role of capacitors in circuit design. Therefore, we place special emphasis on capacitor selection and layout, and ensure that every capacitor performs at its maximum efficiency through a rigorous quality control system. Take the camera flash circuit as an example: high-quality electrolytic capacitors are used as energy storage units. By precisely calculating their capacitance and voltage ratings, sufficient current is released to drive the flash tube during the moment of photography, while preventing capacitor damage caused by overvoltage.
The Function of Capacitors
1. Filtering and Coupling Functions
Another remarkable characteristic of capacitors is their different “attitudes” toward AC and DC signals—they allow AC signals to pass through while blocking DC signals. This characteristic makes capacitors indispensable components in signal processing.
In power supply filtering applications, engineers carefully design multi-stage capacitor filtering networks, typically combining large-capacity electrolytic capacitors with small-capacity ceramic capacitors. The former are responsible for filtering out low-frequency ripple, while the latter target high-frequency noise. This “size-matching” approach provides customers with exceptionally pure DC power, which is the foundation for the stable operation of many high-end electronic devices.
In terms of signal coupling, multi-layer PCB design technology can minimize the impact of parasitic parameters on coupling capacitors. By precisely placing high-quality film capacitors on critical signal paths, AC signals can be transmitted without loss, while effectively isolating DC bias interference between different circuit levels.
2. Decoupling and Bypass Capacitors
In high-speed digital circuits and RF systems, capacitors transition from passive components to active stabilizers. When chips switch between high-speed operating states, they generate transient current demands. Relying solely on the power supply line’s response would cause voltage fluctuations and system instability.

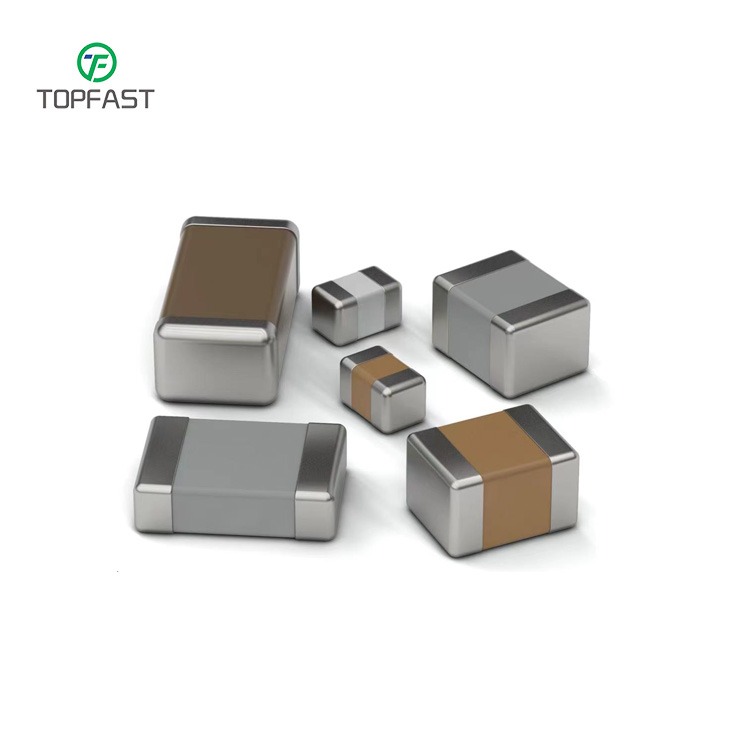

A decoupling capacitor network with carefully calculated capacitance values is arranged near the power pins of each IC. Using advanced SMT mounting technology, even ultra-small ceramic capacitors as small as 01005 can be precisely placed. By minimizing the trace length between the capacitor and the chip, loop inductance is reduced to the lowest possible level, ensuring the capacitor can respond to the chip’s current demands within nanoseconds. This pursuit of perfection in detail enables PCB products to perform exceptionally well in high-speed applications.
Bypass capacitors at critical nodes in analog circuits must not only consider the capacitor’s nominal value but also its equivalent series resistance (ESR) and temperature characteristics. Through precise bypass network design, a “noise discharge channel” is provided for sensitive circuit nodes, significantly improving the system’s signal-to-noise ratio and stability.
3. Timing Circuits
When capacitors and resistors form an RC network, they act as “clock generators” in the electronic world. The charging and discharging processes of capacitors exhibit precise time characteristics, which are widely applied in various timing and oscillation circuits.

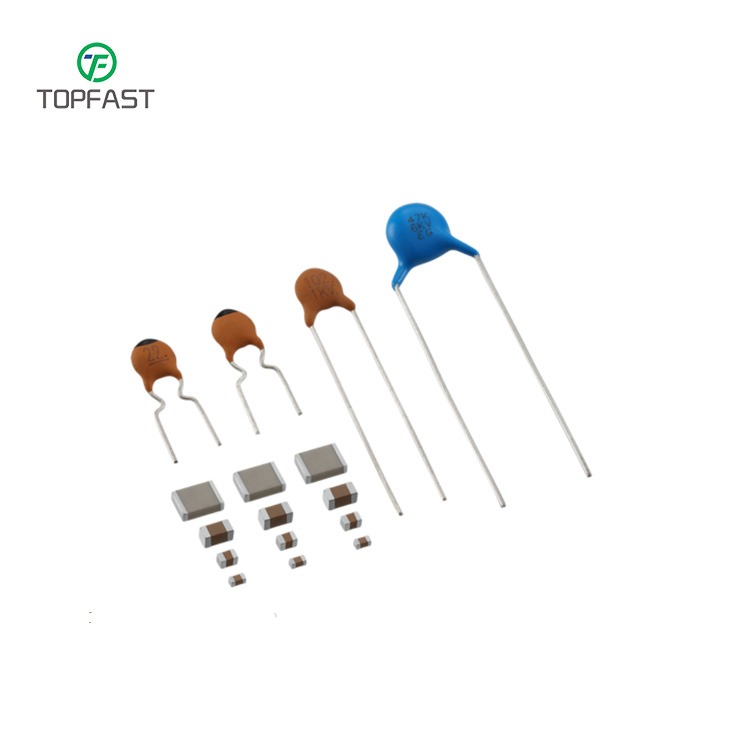

Topfast has accumulated extensive experience in the manufacturing of medical device PCBs, many of which require extremely precise timing circuits for vital sign monitoring devices. We utilize C0G/NP0-class ceramic capacitors with excellent temperature stability, combined with precision resistors, to construct RC timing networks with minimal temperature drift. By precisely controlling the charging and discharging curves of the capacitors, we achieve timing control accuracy at the millisecond or even microsecond level, ensuring the reliable operation of medical devices.
In LED dimming circuits, we leverage the timing characteristics of capacitors to create smooth brightness transition effects. By carefully selecting capacitor materials and optimizing circuit layout, we avoid common “step-like” dimming issues, delivering a comfortable visual experience for users. This focus on user experience is what sets Topfast apart from ordinary PCB manufacturers.

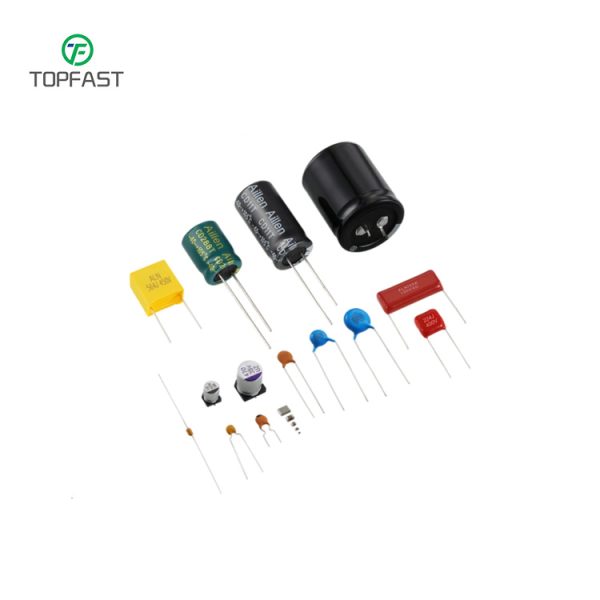

As a senior expert in the field of electronic manufacturing, Topfast not only provides PCB manufacturing services but also has built a complete device procurement system and capacitor supply chain system. We maintain long-term cooperative relationships with top capacitor manufacturers such as Murata, TDK, and AVX to ensure that our customers can obtain genuine original components. Whether it’s standard ceramic capacitors, electrolytic capacitors, or high-voltage capacitors and high-temperature capacitors for special applications, we can quickly respond and provide tailored solutions that meet your requirements.
When customers provide a Bill of Materials (BOM) list, we conduct professional component verification and offer alternative suggestions to prevent performance losses caused by parameter mismatches. For capacitor applications in high-frequency circuits, we also provide recommendations on dielectric material selection to help customers achieve the optimal balance between cost and performance.
During PCB assembly, from 01005-sized miniature SMD capacitors to large-volume aluminum electrolytic capacitors, SMT equipment and wave soldering processes ensure perfect焊接 quality. Every assembled PCB undergoes rigorous AOI and X-ray inspection to ensure that capacitor polarity, position, and welding quality fully meet the requirements.
Comprehensive Quality Assurance System
Quality is not detected, but designed. We control capacitor quality from the source. All capacitors entering the factory undergo strict incoming inspections, including visual inspections, electrical parameter tests (LCR tests), and necessary X-ray inspections. We have established a complete batch traceability system to ensure that any quality issues can be quickly identified and resolved.
We develop tailored quality control strategies for different application scenarios. For capacitors in high-frequency circuits, we focus on their Q-factor and ESR parameters; for power filtering capacitors, we prioritize capacity accuracy and durability. This targeted quality control approach ensures that we deliver PCB products that truly meet our customers’ application requirements.
Equipped with comprehensive reliability testing equipment in the PCB environmental testing laboratory, we can simulate various extreme operating conditions to validate capacitor performance. Whether it’s long-term aging tests under high-temperature and high-humidity conditions or durability tests under mechanical vibration conditions, Topfast provides customers with reliable and accurate data support.
Summary
Although capacitors are small, they play a crucial role in electronic systems. With 17 years of industry expertise, Topfast has established a comprehensive capability system spanning capacitor selection, procurement, PCB design, manufacturing, and assembly. We not only provide products but also offer solutions based on deep technical understanding. Whether for conventional consumer electronics or high-reliability automotive electronics and medical devices, Topfast leverages its professional technical team, stringent quality control, and extensive manufacturing experience to deliver reliable capacitor application solutions for customers.
In today’s rapidly evolving electronic technology landscape, Topfast will continue to use capacitors as a starting point, delving into every detail of electronic manufacturing, and leveraging professionalism and craftsmanship to create greater value for our customers. We believe that it is precisely this meticulous attention to these “small components” that enables the “high performance” of electronic products.
